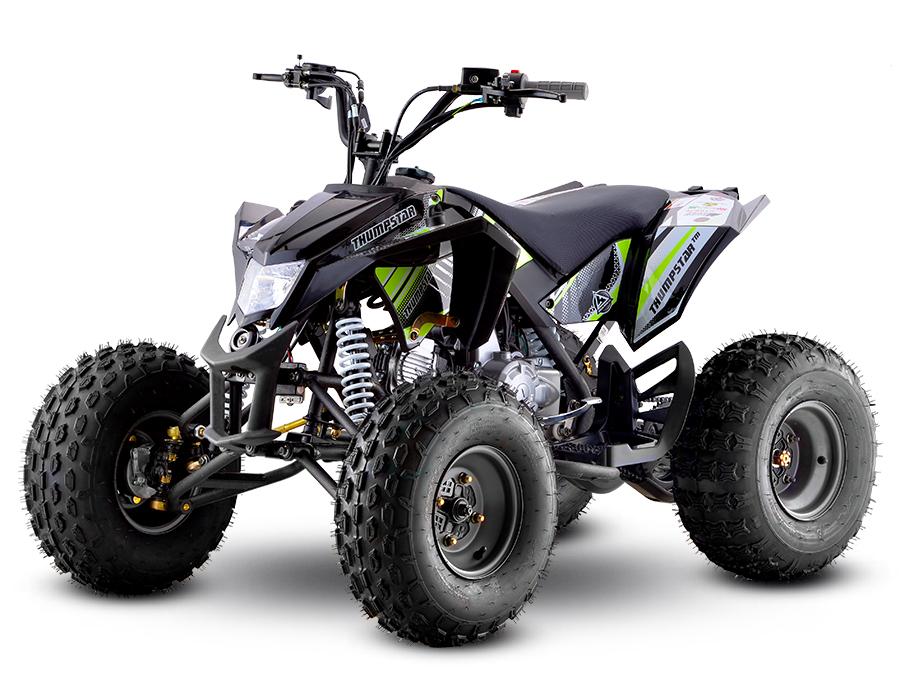

Thumpstar - ATV 125

SOLD OUT[MSRP]

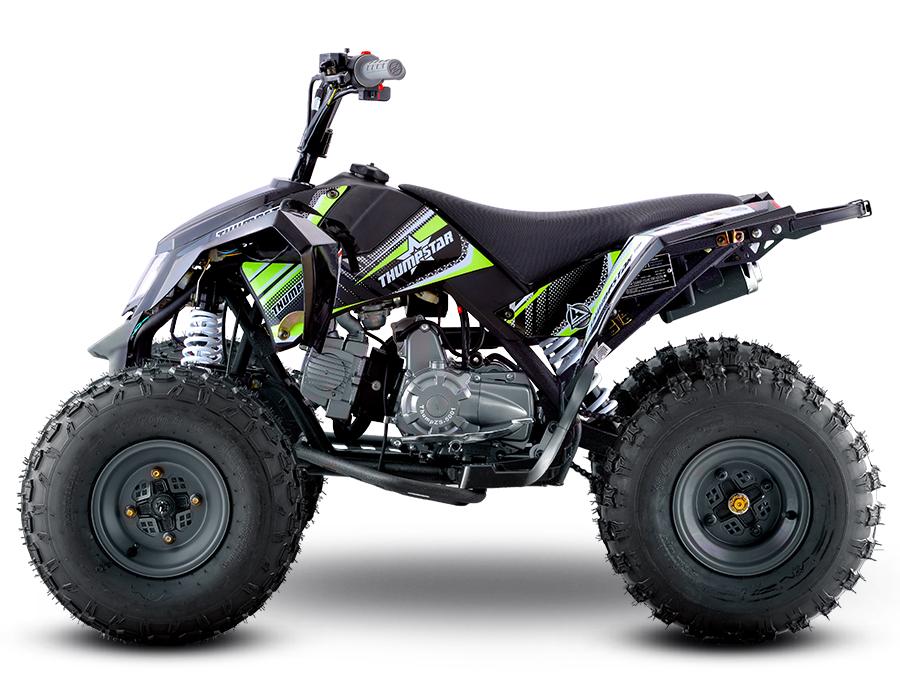

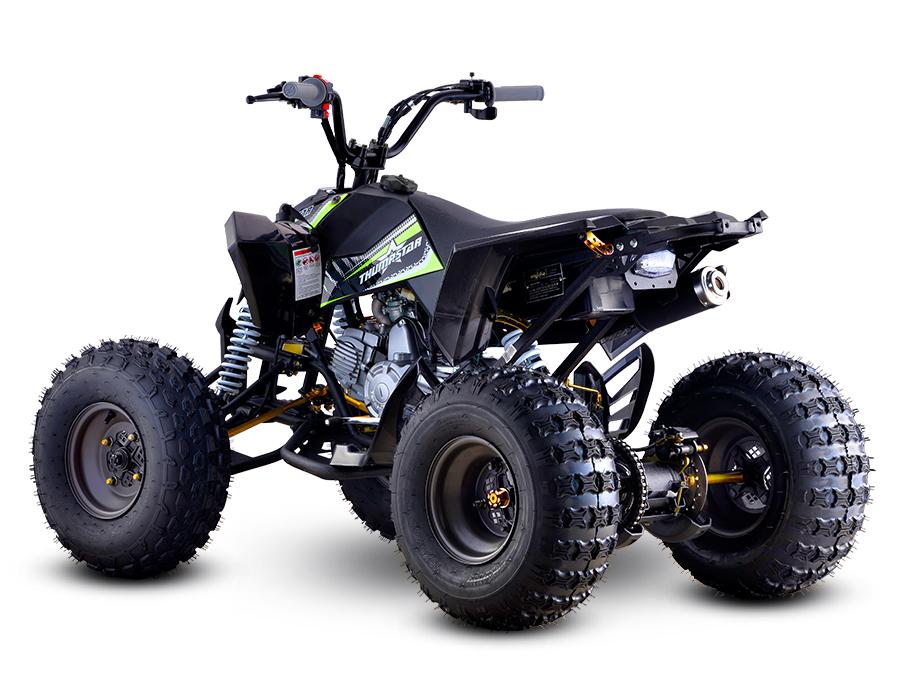

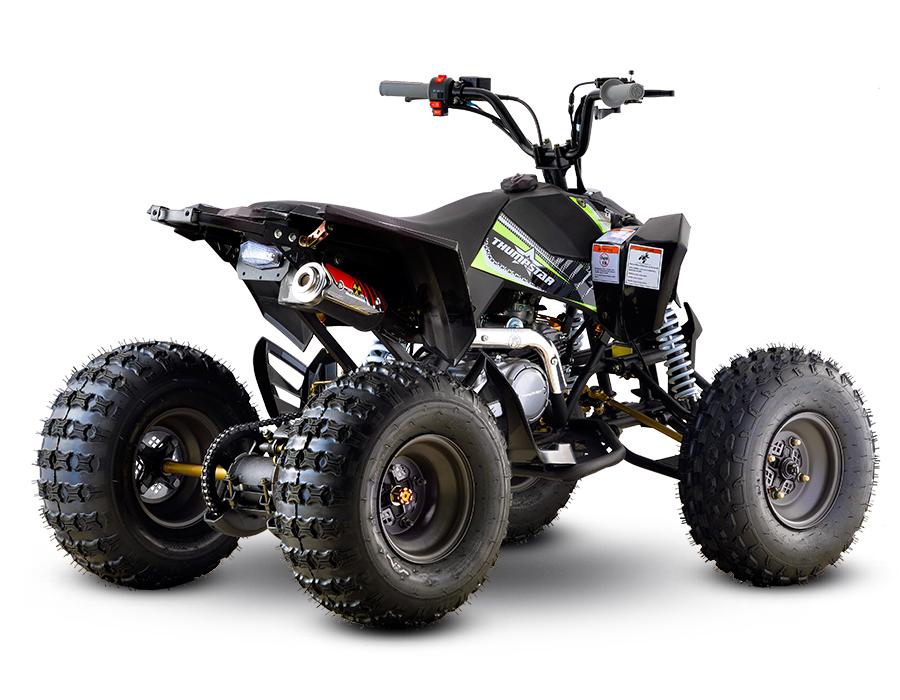

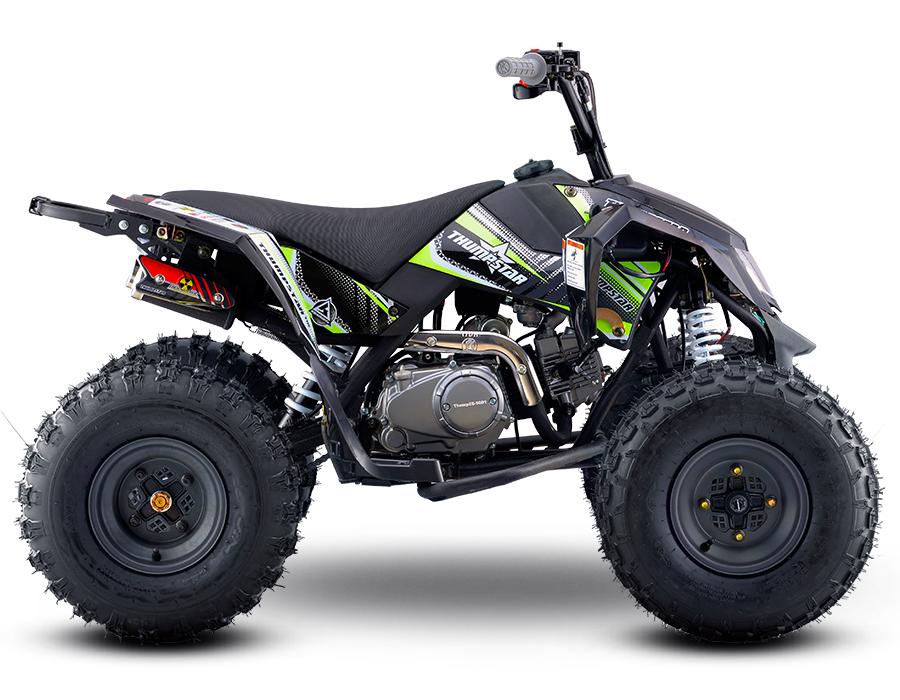

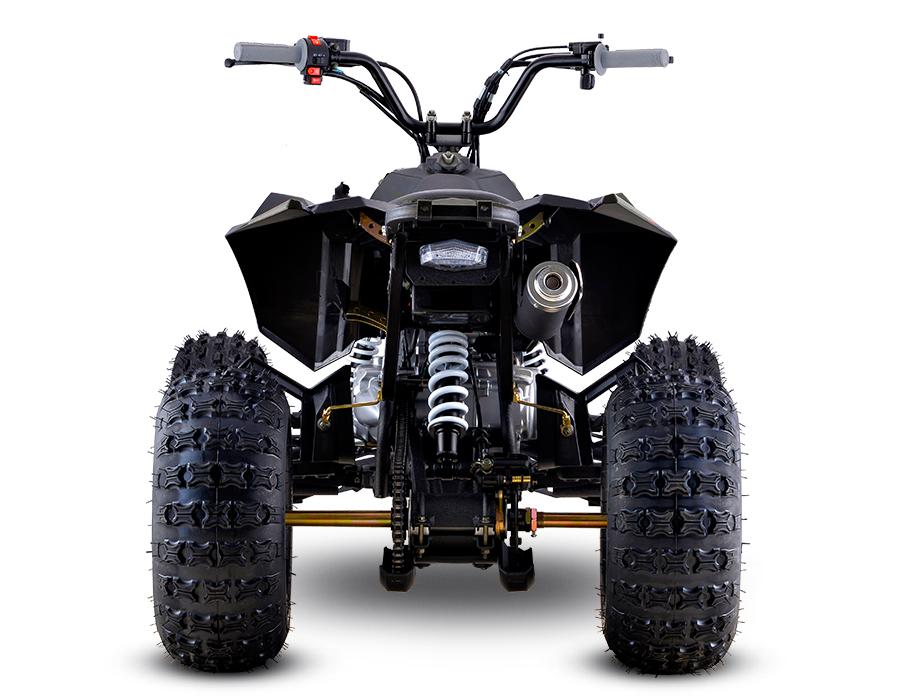

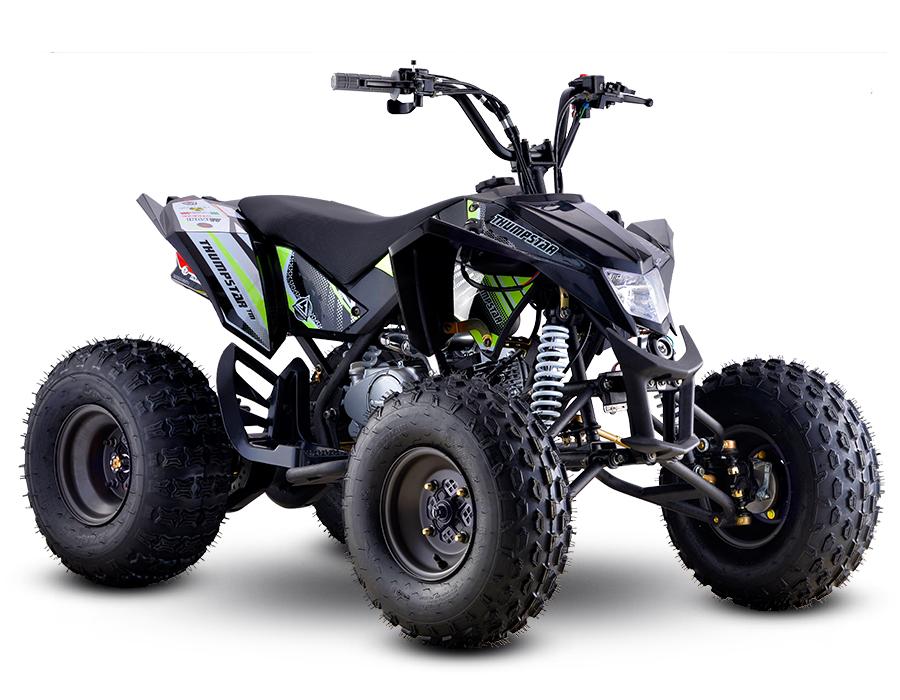

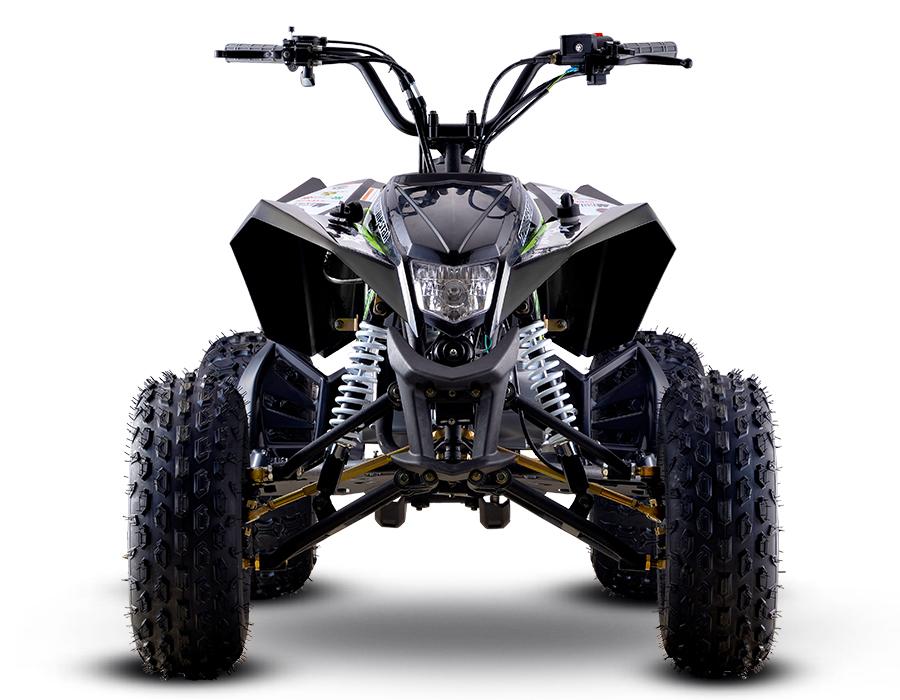

ATV 125 1st Image
ATV 125 1st Image
ATV 125 2nd Image
ATV 125 3rd Image
ATV 125 4th Image
ATV 125 5th Image
ATV 125 6th Image
ATV 125 7th Image
ATV 125 8th Image
ATV 125 9th Image
Database

Description

ATV125 Throttle Limiter

Throttle Limiter



Parental control is a must on any Youth ATV where a child is just starting out and learning how to ride. We here at Thumpstar have tailored the ATV125 to those junior riders who are learning, and given you the parent or teacher full control over your child's bike, with an easily adjustable throttle limiter, the speed and power delivery can be easily limited.

Lanyard



Safety is an important feature for kids just starting out and parents who are supervising. The ATV125 comes equipped with an emergency lanyard which can be attached to your child, or be held by you at a short distance, and will instantly kill the bike should it be pulled off.

ATV125 Lanyard
ATV125 Rear Disc Brakes

Rear disc brakes



Something more important than the power to go fast is stopping power. The ATV125 is well suited for this, with rear disc brakes it has more than enough stopping power to go from fast to stopped in the blink of an eye.

4 gears with reverse



Where young riders are still coming to grips with how to handle a motorcycle not having to worry about too many features is important. The ATV125 has a centrifugal clutch which allows the beginner rider to learn throttle control, braking, and balance without having to simultaneously learn how to deal with a clutch.

ATV125 Gears
ATV125 Steel Footrest

Steel footrest



Ergonomically designed steel footrests not only look sleek on these bikes, but also provide the rider with unparalleled grip and comfort while remaining a heavy duty alternative to the cheap plastic often found with our competitors.

Mikuni Carb



Reliability comes with using trusted brands of parts. The ATV125 now includes a Mikuni VM22 carburetor which allows us to faithfully say that the performance and reliability of these bikes has been greatly improved on previous models.

ATV125 Mikuni Carb

Product Packaging

Pitbike Assembly & Servicing

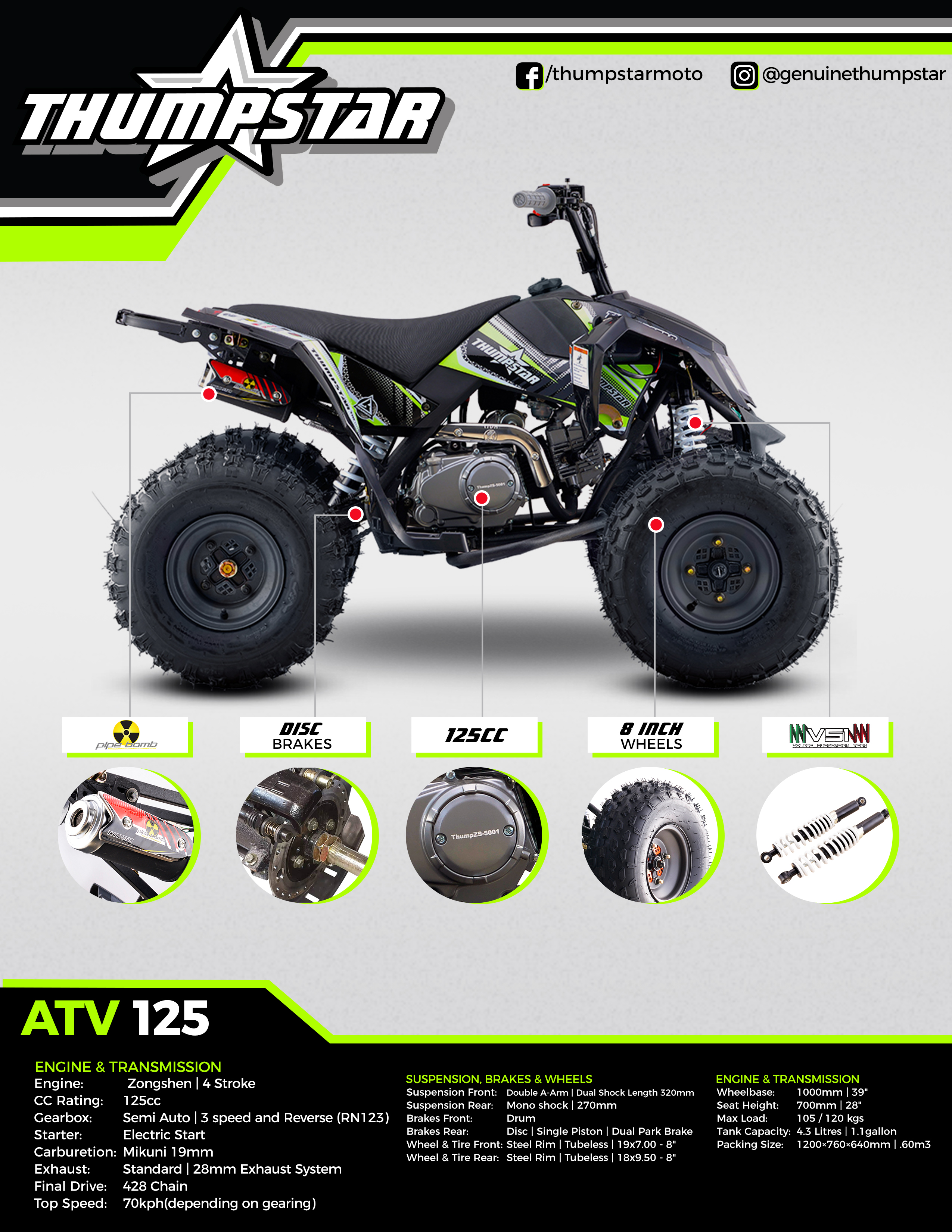

Specifications (ATV 125 YOUTH QUAD)

ENGINE & TRANSMISSION
Engine Zongshen | 4 Stroke
CC Rating 125cc
Gearbox Semi Auto | 3 speed and Reverse (RN123)
Starter Electric Start
Carburetion Mikuni 19mm
Exhaust Standard | 28mm Exhaust System
Final Drive 428 Chain
Top Speed 70kph(depending on gearing)

SUSPENSION, BRAKES, & WHEELS
Suspension Front Double A-Arm | Dual Shock Length 320mm
Suspension Rear Mono shock | 270mm
Brakes Front Drum
Brakes Rear Disc | Single Piston | Dual Park Brake

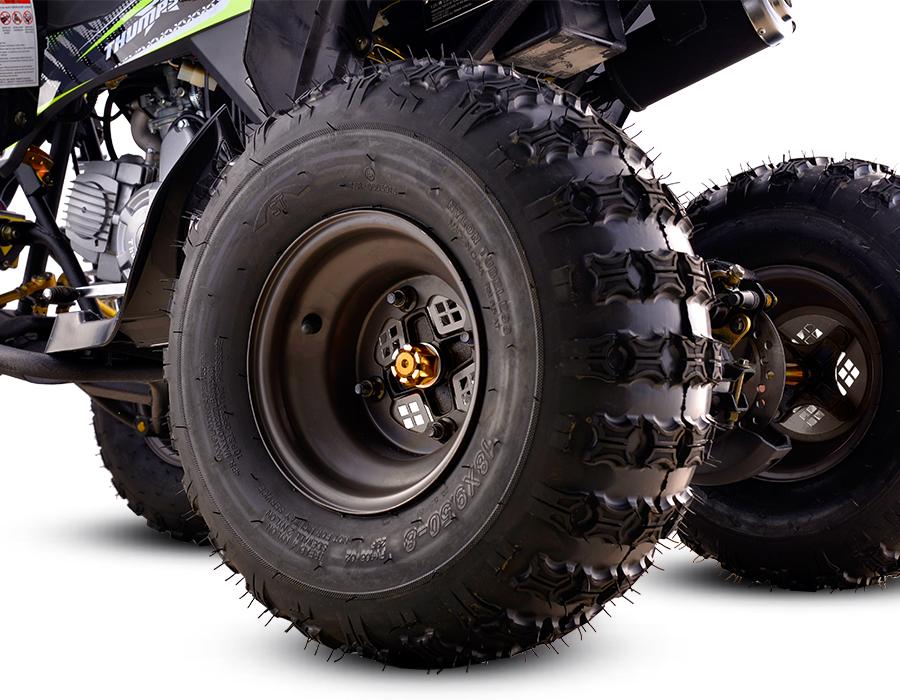

Wheel & Tire Front Steel Rim | Tubeless | 19x7.00 - 8"
Wheel & Tire Rear Steel Rim | Tubeless | 18x9.50 - 8"
Max Load 105 / 120 kgs

DIMENSIONS & WEIGHT
Wheelbase (axle to axle) 1000mm | 39"
Seat Height 700mm | 28"
Product Weight N.W | G.W 105/120kg | 231/264
Tank Capacity 4.3 Litres | 1.1gallon
Product Packing Size 1200×760×640mm | .60m3
